Import from CSV File

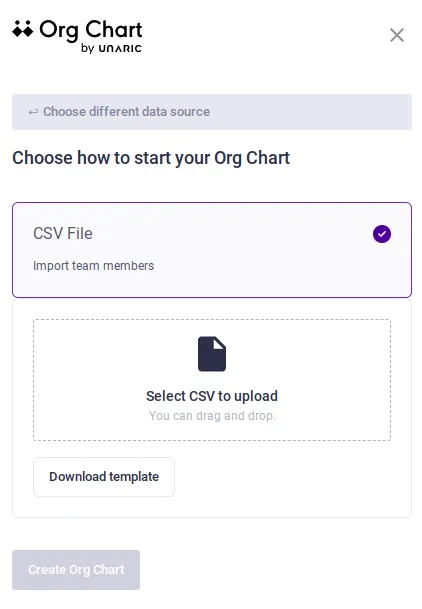

you can import your org chart from a pre completed csv file to this end, use this template file https //archbee doc uploads s3 amazonaws com/8u46cdd4fhokekemzzobd puqljjlxcb3dmkbz0jte 20241124 185030 csv the only supported format for imports is csv other spreadsheet formats (such as xlsx, xls, and ods) are not supported additionally, due to variations in how spreadsheet software handles csv conversions, saving and re saving the template csv in other formats can introduce errors as such, ensure you upload the original template csv file without any format modifications csv template guidelines recommendations photos cannot be uploaded via csv these must be added directly in the org chart interface special characters are not allowed in email fields inconsistent casing, especially in email addresses, can lead to errors during re import please maintain strict case consistency between email addresses, e g , using lowercase for employee and supervisor emails to avoid potential data import errors, ensure there are no blank leading spaces at the beginning of any cell in your csv file csv fields first name (required) the first name of the employee last name (required) the last name of the employee email (required) the employee's primary email address aliasemails alternative email addresses for the employee, separated by commas position the employee's job title or role within the company supervisoremail (required) the email address of the employee's supervisor department the primary department where the employee works subdepartment the specific team or subdivision within the department location the physical location or office where the employee is based startdate the employee's start date in the company, formatted as dd mm yyyy enddate the employee's end date in the company (if applicable), formatted as dd mm yyyy this may be left blank for current employees mobile the employee's mobile phone number imageurl the url linking to the employee's profile picture or image csv format our system uses semicolons (;) in csv files as the column separator this is the standard format in many regions, especially in europe however, some versions of microsoft excel (particularly in us/uk settings) expect csvs to use commas (,) instead, which can lead to data being incorrectly parsed if you see unexpected formatting or missing data when opening the csv in excel, you have two options to fix it use the data import wizard open excel navigate to data > from text/csv select your exported csv file when prompted, set the delimiter to semicolon (;) click load to correctly display the data manually replace the separator open the csv file in a text editor (notepad, notepad++, vs code) find and replace all semicolons (;) with commas (,) save the file and reopen it in excel in the case of google sheets , use file > import , select the csv, and choose semicolon (;) as the separator under custom separator other spreadsheet applications like libreoffice and mac numbers should automatically detect the separator correctly import org chart from csv file go to charts https //app orgchart unaric com/charts and click the + create new org chart button enter a name for the org chart additionally, you can pick up an emoji to distinguish the org chart click continue choose csv file click select csv to upload to select your pre filled csv file or drag and drop it click create org chart to finish sync org chart data from csv file as a way to update employee information in bulk, you can export the org chart to csv and then import it back go to settings > export org chart select the data source ( whole company or department or team ) and choose csv as the file format click download update the file locally with the new changes and save it modifications must follow these requirements providing an email address is required every email must be unique avoid using special characters in the email addresses ensure consistent capitalization for all entries on org chart, go to settings > general scroll down to import employee data and upload the updated file click the import employee data button you will be asked to confirm the process click confirm & import employee data to finish
